Arducam ezBOX
Quick PoC, Easy Deployment. Rich Features. Not ANOTHER Webcam.
Struggling with embedded vision selection?
Meet Arducam ezBOX.
Simplify your evaluation process and accelerate your time to market with Arducam ezBOX – our plug-and-play, cost-effective solution offering high frame rates, HDR, high resolution, digital pan-tilt-zoom functionality, and more, tailored for all your embedded vision projects.
Why Arducam ezBOX?
🔵PAIN POINTS
Frustrating Hardware Search: Finding the right camera modules, lenses, and configurations is time-consuming.
⚪Arducam ezBOX
Diverse SKUs: Choose from a growing family of products tailored to specific visual needs.
🔵PAIN POINTS
Complex Setup: Learning and implementing drivers, configurations, and integrations can be exhausting.
⚪Arducam ezBOX
No Drivers Required: UVC compliance ensures hassle-free setup.
🔵PAIN POINTS
High Costs: Traditional methods often involve significant trial-and-error expenses.
⚪Arducam ezBOX
Cost-Effective: Affordable solutions without compromising quality.
🔵PAIN POINTS
Lack of Long-term Supply and Support: Many users face challenges with inadequate after-sales services.
⚪Arducam ezBOX
Long-term Supply and Support: Arducam is committed to delivering long-term and reliable support for professional users.
Explore the ezBOX Series
Tailored to Your Vision Need
The ezBOX series offers three great options: ezBOX-Swift, ezBOX-HDR, and ezBOX-Klarity. Each product allows you to adjust the resolution and frame rate to fit your project requirements—because we know every project is unique.
General Features
Autofocus
- 78° DFOV
- F1.8 Aperture
Plug-n-Play
- USB2.0 UVC Compliance
- No additional drivers needed
Multi-OS Support
- Works seamlessly on Windows and Linux
Proprietary ISP
- Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)
Locate your needs
Here’s how it works: start by identifying the resolution and frame rate you need. With resolutions ranging from VGA to 16MP and frame rates from 15 FPS to 360 FPS, you can quickly see if one of our three products meets your needs.

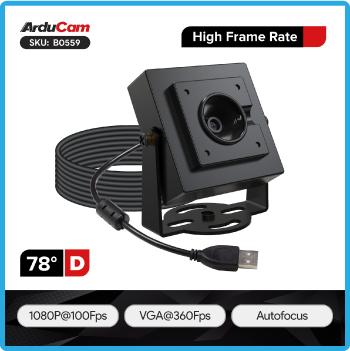

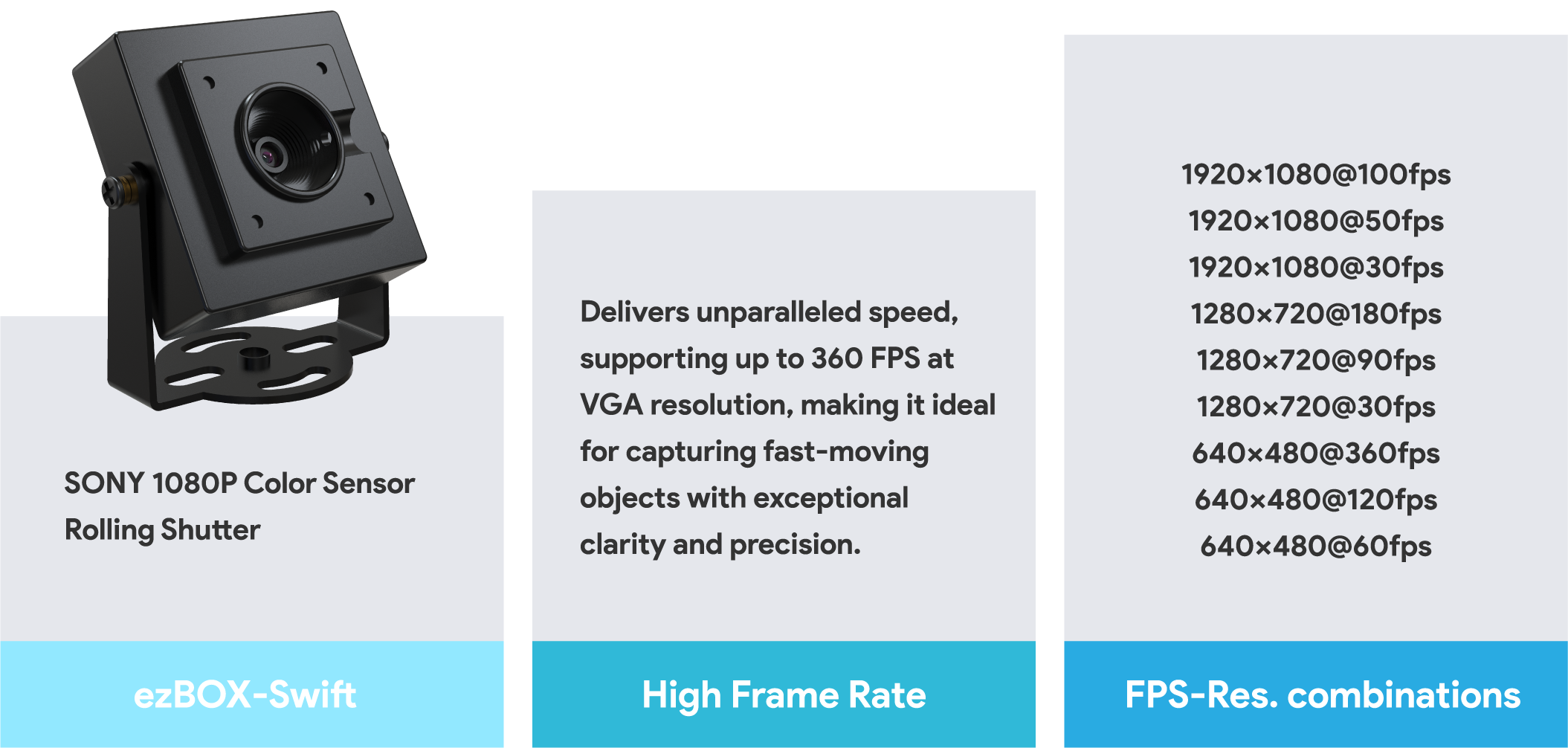

ezBOX – Swift
Speed Meets Precision
ezBOX-Swift combines speed and precision, delivering up to 360 FPS at VGA resolution for capturing fast-moving objects with exceptional clarity. Powered by a SONY 1080P Color Sensor, it supports a wide range of FPS-Res combinations, from 1920×1080@100fps to 640×480@360fps, ensuring versatility and high-quality imaging for dynamic applications.

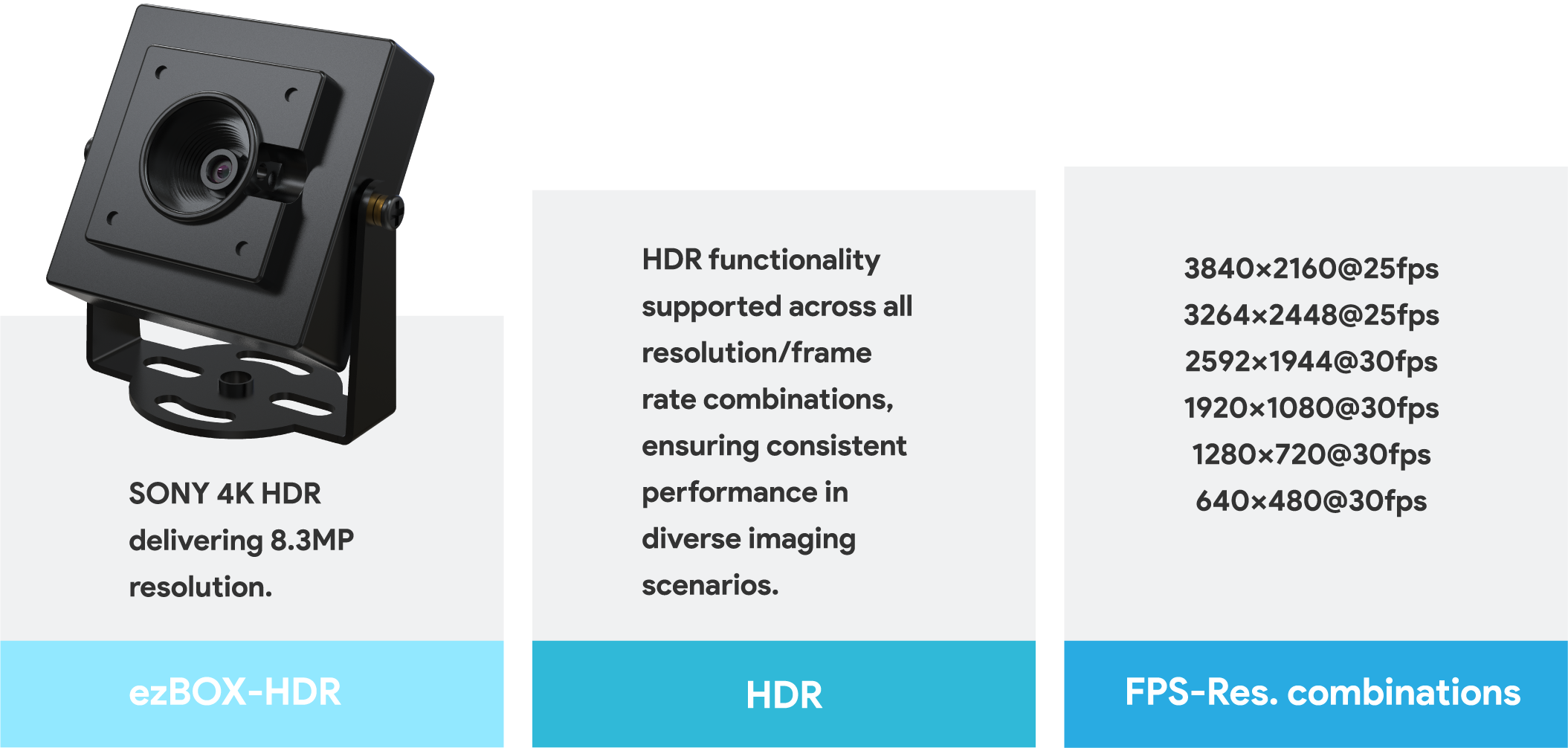

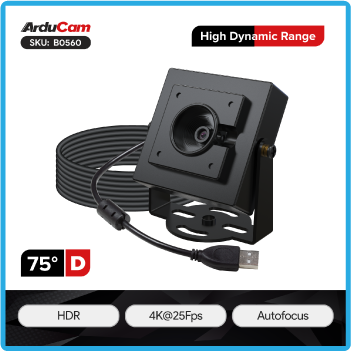

ezBOX – HDR
Exceptional Dynamic Range
ezBOX-HDR excels in delivering exceptional dynamic range with its SONY 4K HDR sensor, featuring 8.3MP resolution. It maximizes the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. The HDR functionality is supported across all resolution and frame rate combinations, providing consistent performance in diverse imaging scenarios.

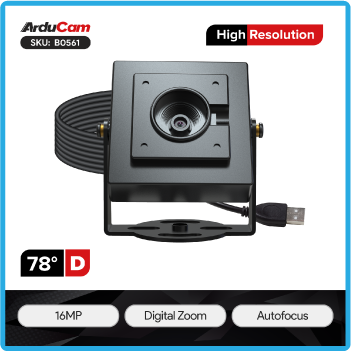

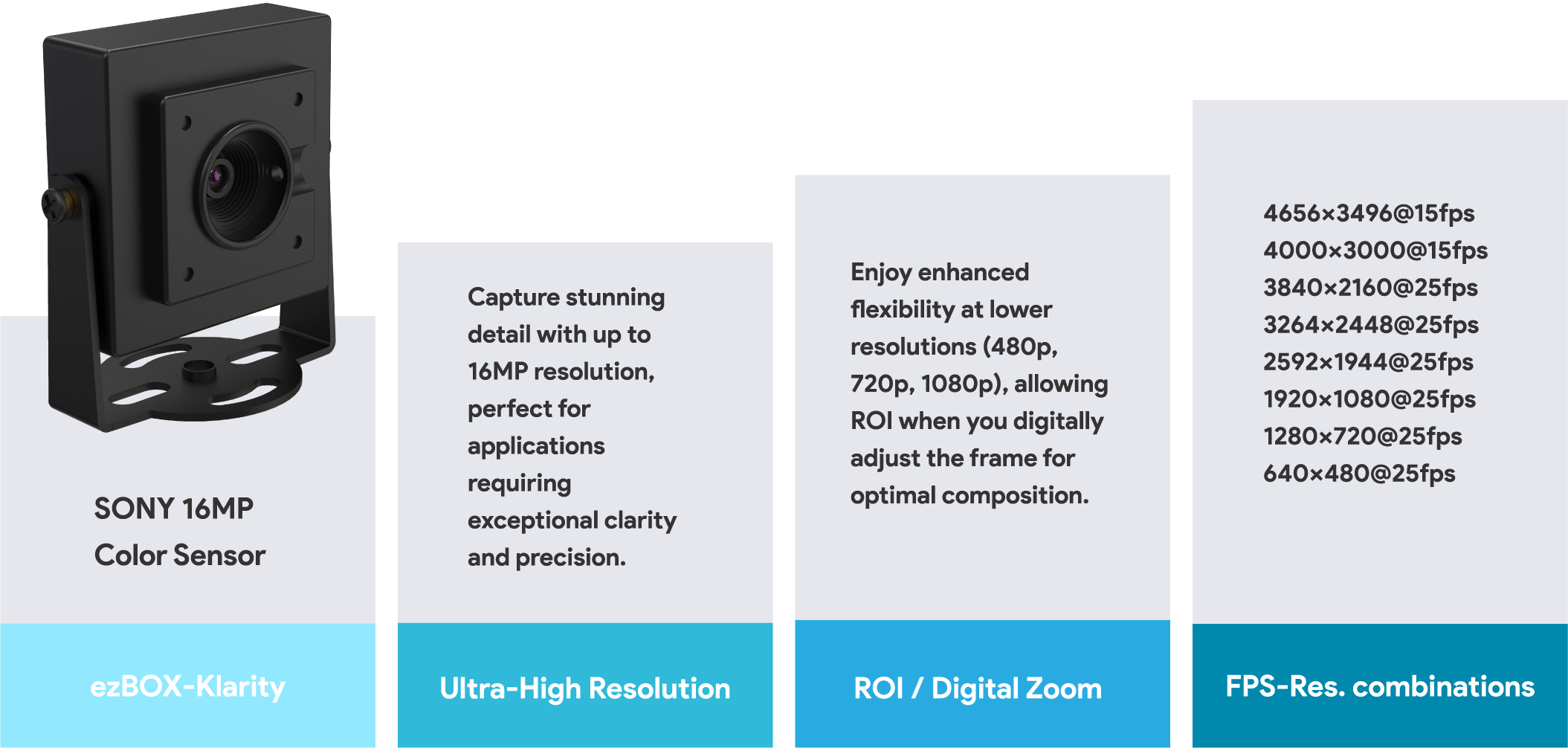

ezBOX – Klarity
Precision in Every Pixel
ezBOX-Klarity offers precision in every pixel with its SONY 16MP Color Sensor. This camera is perfect for applications requiring exceptional clarity and precision, with resolutions up to 16MP. Additionally, it provides enhanced flexibility at lower resolutions (480p, 720p, 1080p), allowing for ROI function via digital Pan-Tilt-Zoom (PTZ).

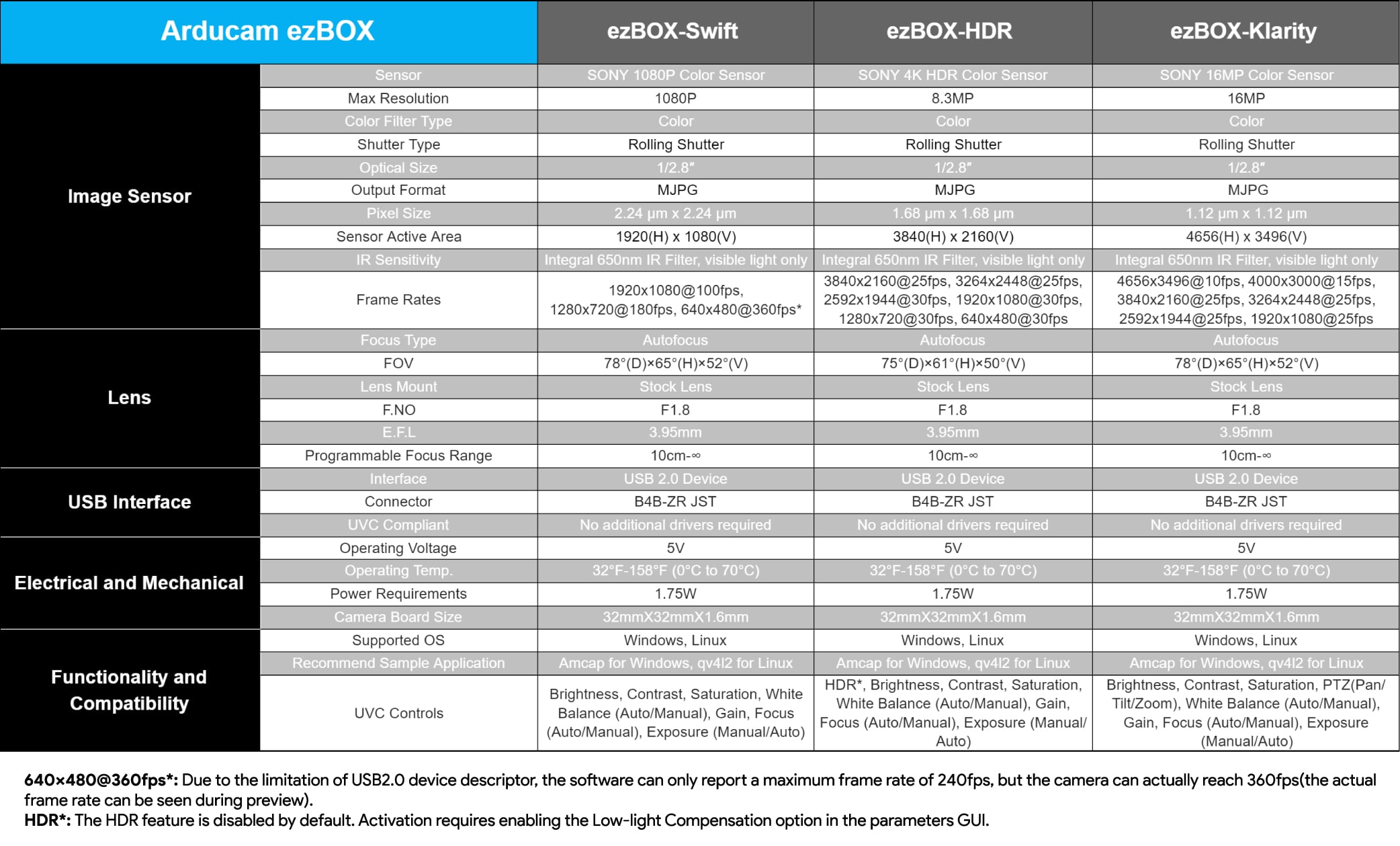

ezBOX Product Specifications
Find the Perfect ezBOX Product for Your Project Needs
Off-the-shelf Options
ezBOX – Swift
ezBOX – HDR
ezBOX – Klarity
Didn’t Find the Right Fit for Your Project?
OEM/ODM
We understand that every project is unique, and sometimes off-the-shelf solutions don’t quite
meet your specific needs. That’s why ezBOX offers OEM/ODM services—to help you create a
customized solution that’s tailor-made for your application.Whether you’re evaluating a concept,
building a proof of concept (POC), or scaling a fully customized product, we’re here to bring
your vision to life.
